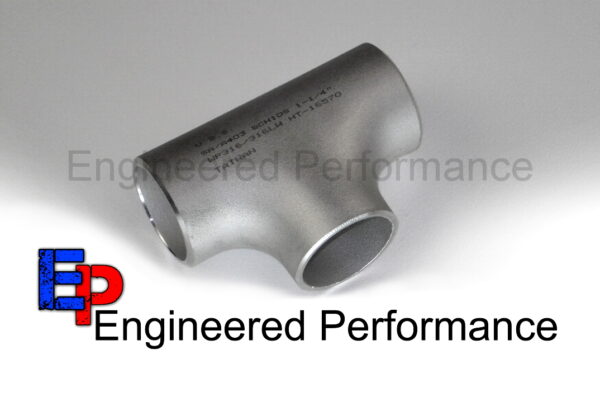

Turbo Manifold Butt Steam Pipe ‘T’ Piece

Description

Specifications:

TYPE: Equal Tee

SIZE: 1-1/4″ (32mm) nominal bore

MINIMUM WALL THICKNESS: 2.77mm – Schedule 10  (may be thicker in parts of the fitting)

NOMINAL INSIDE DIAMETER: 28mm

OUTSIDE DIAMETER: 33.5mm

MATERIAL STANDARD: grade 316 OR 304 stainless steel complying with ASTM A403  (depending on what’s in stock)

MANUFACTURING STANDARD: Manufactured to ASME B16.9 dimensions & specifications

Perfect for turbo manifold fabrication

These fittings have machined ends with chamfered edges and are designed to be butt welded together, with the chamfered edge being filled with weld.  This combined with the Schedule 10 spec wall thickness provides a super strong end result.

NOTE: if we have 316SS advertised, but we only have 304SS grade stainless pipe fittings in stock, we will send out the 304SS fittings, as they are backwards compatible when it comes to turbo manifold fabrication.
