Throttle Body Injection IDF weber

Description

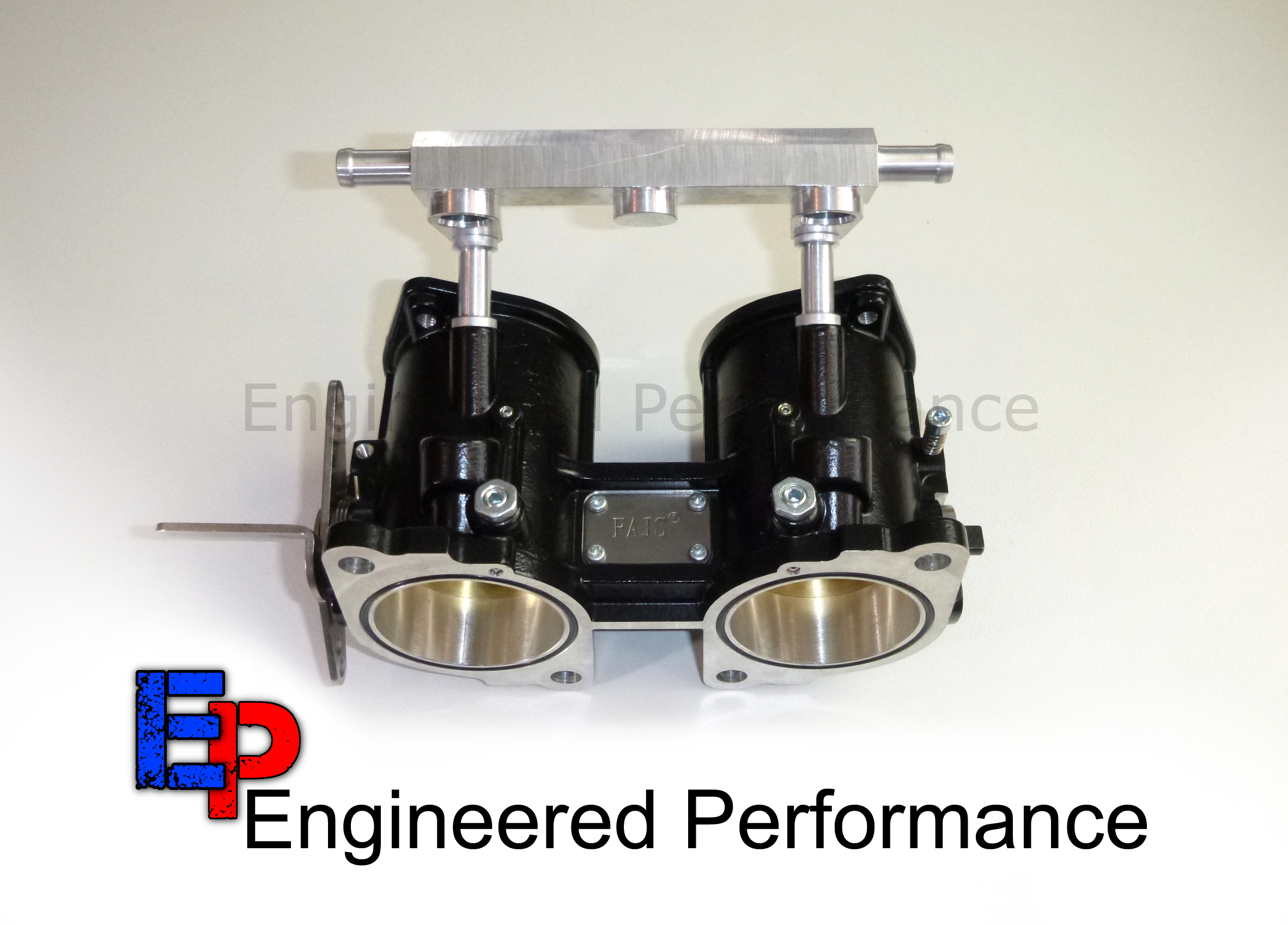

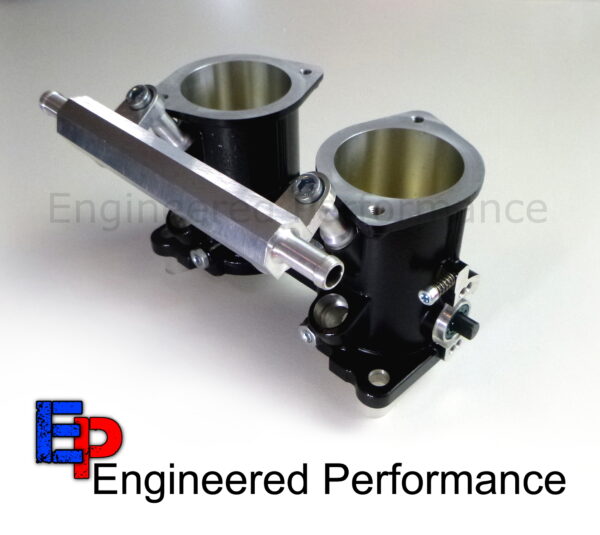

Designed as replacement for Weber/FAJS/EMPI 44IDF carbs, however these throttle bodies are only 85mm tall.

FAJS brand throttle body, similar to the popular Jenvey brand throttle bodies, which are also a copy of the Weber carb pattern.

Perfect for Individual Throttle Body (ITB) setups for max airflow and power.

Package includes:

   – Dual barrel of either 40mm, 45mm or 48mm (depends on what you choose) Weber IDF down draught pattern throttle body

   – CNC billet aluminium fuel rail – suit 14mm o-ring injectors

   – mounting hardware for fuel rail

   – mounting hardware for air horns or filters

These are bare throttle bodies with fuel rails and basic linkages included only.  Other parts like fuel injectors, throttle position sensor, and air horns or air filters are not included.  For a complete throttle body pacakge with injectors, etc, check out our other ebay listings.

Throttle body basic specs:

   – 85mm tall one-piece integral body casting

   – either 40mm, 45mm or 48mm butterflies

   – Integral casting deletes the linkage between each butterfly by using a solid throttle shaft

   – Parallel bore barrels

   – Machined base flange for included o-rings – therefore no gaskets required between TB and manifold

   – Idle air bleeds to finely balance idle airflow for each cylinder

   – Fitted with generic throttle linkage

   – Powder coated black

   – Sealed ball bearing throttle shaft bearings (perfect for turbo use!)

The IDF pattern throttle bodies are designed to replicate the Weber IDF down draught carbs.  These Throttle Body Injection (TBI) units are a direct replacement for Weber/FAJS/Empi IDF carbs, and can be connected with standard linkage kits, and be fitted with standard air horns or air cleaners, etc.

If you already have an intake manifold mounting one or more Weber brand or reproduction IDF carbs, then this is a perfect way to upgrade to Electronic Fuel Injection (EFI), whilst retaining the optimum flow characteristics of the individual runner IDF style intake manifolds, which usually have one butterfly per cylinder, offering the best flowing setups available.

Shipping is flat rate to any Australian address, we will either ship with our courier (preferred) or Aus Post registered (signature required).

We also supply these throttle bodies with fuel injectors, TPS and either air horns or air cleaners.  See our other ebay listings for info, or message us with any questions.

Engineered Performance is not just an online store, we fully understand and use our own products, and tune them on customers cars.  We do not simply re-sell or re-box products, we individually prepare them for customers upon purchase, which includes pre-inspection, initial setup/adjustments and jetting of carbs/throttle bodies, and can offer practical advice based on first hand knowledge.  Consider this when choosing who to buy from.

If you have any questions, just send us a message and we’ll try and reply ASAP, and check out our other ebay listings for other performance items.  We also have new high flow air filters and intake manifolds or adaptor plate kits for various engines to suit these throttle bodies.  Side draught DCOE throttle bodies also available in our ebay store.
