Gemini Fuel Pump kit TX-TG – Low Pressure – Weber Nikki

Description

Aftermarket Electric Low Pressure in-tank fuel pump.

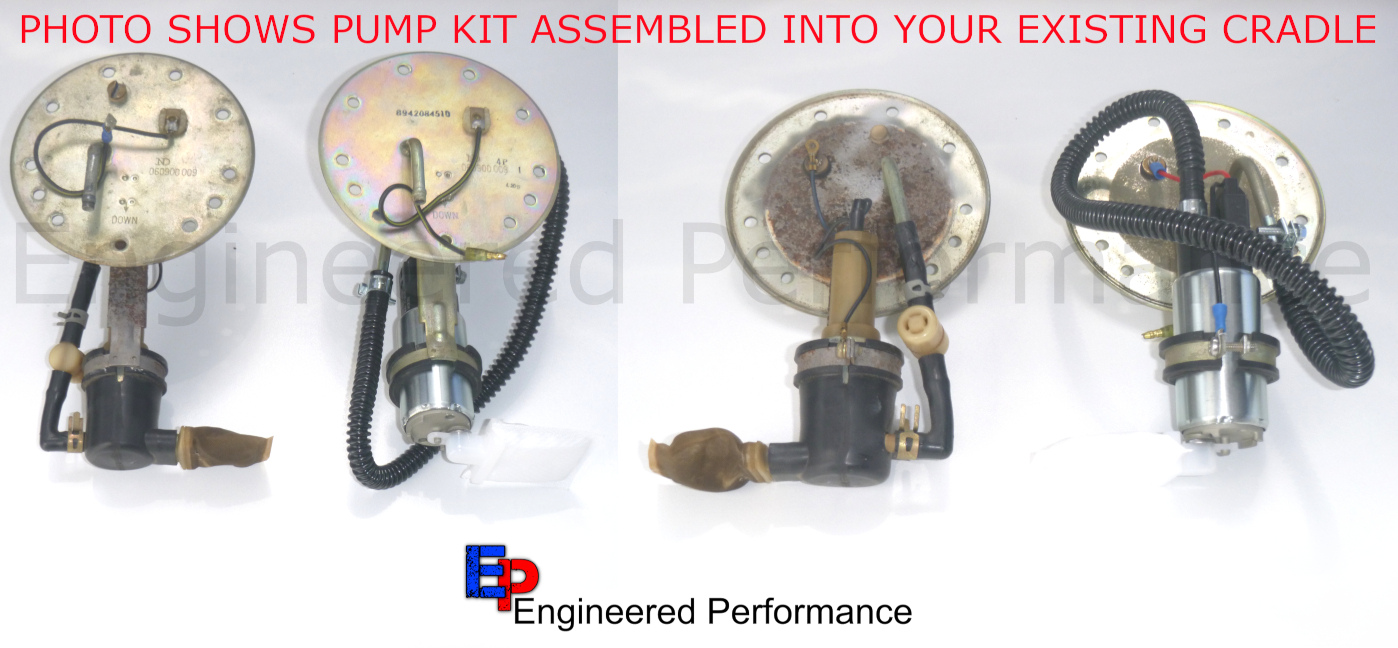

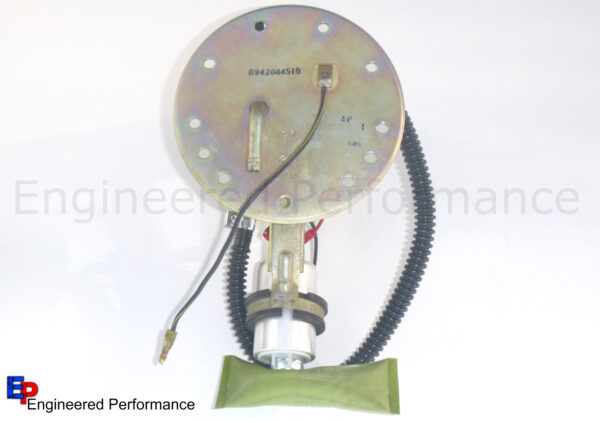

Fuel pump kit to mount new pump to your original existing fuel pump cradle.

These fuel pumps are a great replacement for the original low pressure electric pump.

Good upgrade for higher power applications and Weber carbs, as is capable of high flow.

Or will work equally well on stock engine using Nikki carb, any unused fuel will return to tank through the factory return line.

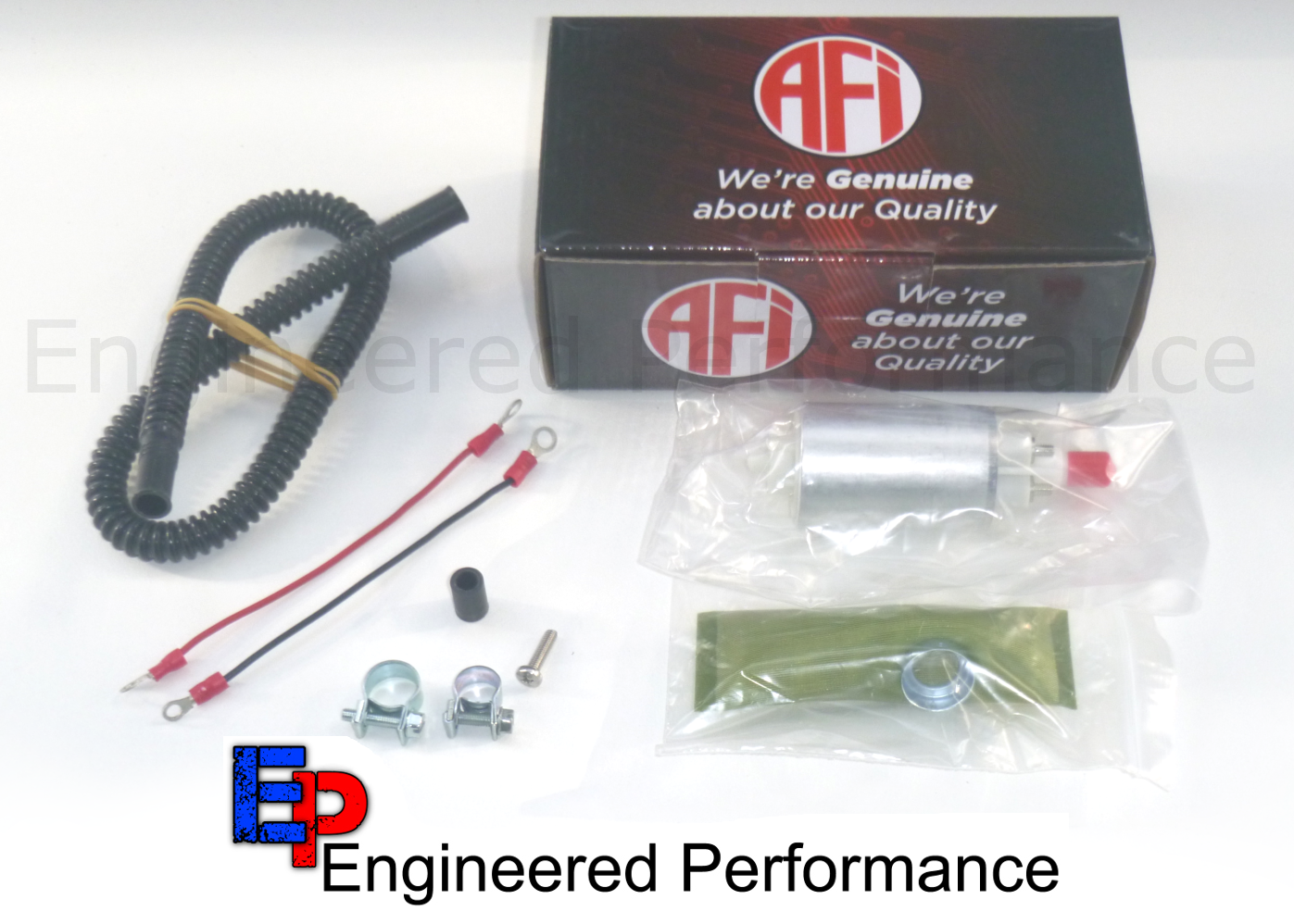

This is a bolt in pump replacement kit – designed to adapt a quality low pressure in-tank pump with larger fuel outlet to the small 1/4″ Gemini steel fuel line, and connect the wiring.  No need to work out how to adapt parts, and make things work.   All the hard work has already been done.  It’s plug-and-play.

Also suitable to feed a surge tank for EFI conversions.

Fuel pump basic specs:

   – ~240 litres/hour free flow

   – Pump diameter = 37mm

   – Draws ~3.5Amps @ 13v

We also keep high pressure EFI pump kits in stock for fuel injection and turbo carb applications.

These in-tank pumps are an ideal replacement for the standard in-tank electric pumps in all model Gemini TX-TG sedans.

The convoluted hose setup is to adapt the larger pump outlet to the smaller Gemini steel fuel line, and has been pressure tested to 70psi.

Fitting instructions are included to show how to disassemble your original in-tank electric pump from your fuel pump cradle, and fit the replacement electric pump.

Engineered Performance is not just an online store, we fully understand and use our own products, and tune them on customers cars.  We do not simply re-sell or re-box products, we individually prepare them for customers upon purchase, which includes pre-inspection, initial setup/adjustments, and jetting and injector sizing for our carbs & throttle bodies, and can offer practical advice based on first hand knowledge.  Consider this when choosing who to buy from.
