Gemini EFI Fuel Injection High Pressure Fuel Pump Bosch Blow Through Turbo Weber

Description

Bosch Electronic Fuel Injection High Pressure EFI in-tank fuel pump.

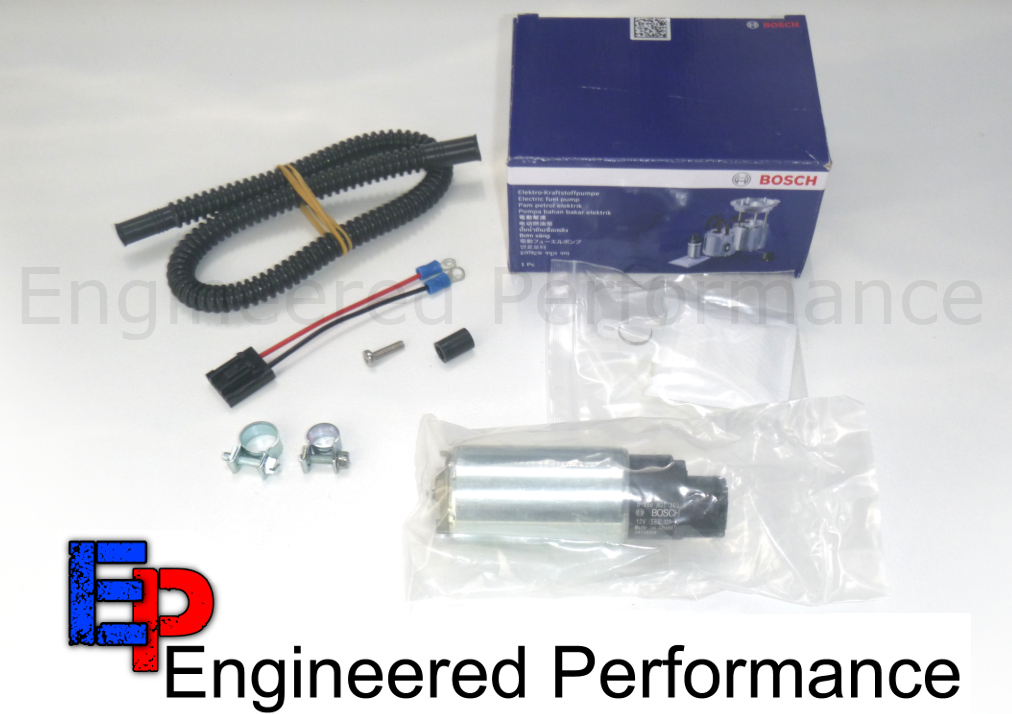

Bosch fuel pump kit to mount pump to your original existing fuel pump cradle.

These are the pumps we use for basic EFI conversions and turbo blow through carb use.

This is a bolt in pump replacement kit – designed to adapt a quality premium high pressure in-tank EFI pump with larger fuel outlet to the small 1/4″ Gemini steel fuel line, and connect the wiring.  No need to work out how to adapt parts, and make things work.   All the hard work has already been done.  It’s plug-and-play.

Bosch fuel pump basic specs:

   – 105litres/hour @ 3bar fuel pressure

   – Pump diameter = 38mm

   – Draws ~5.5Amps @ 13v

  We also keep low pressure replacement pump kits in stock for non-turbo carb applications.

These Bosch in-tank pumps are an ideal replacement for the standard in-tank electric pumps in all model Gemini TX-TG sedans.

The convoluted hose setup is to adapt the larger pump outlet to the smaller Gemini steel fuel line and has been pressure tested to 70psi.

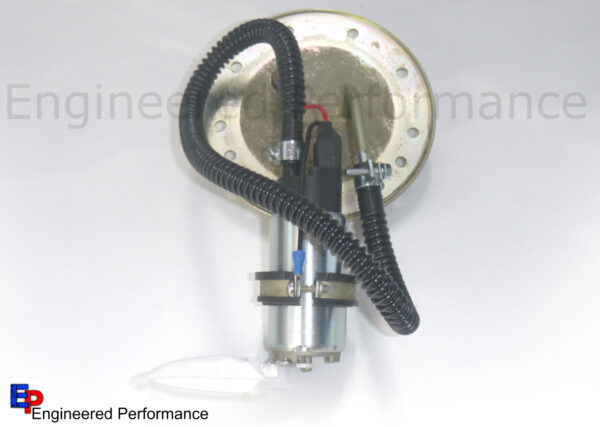

Fitting instructions are included to show how to disassemble your original in-tank electric pump from your fuel pump cradle and fit the replacement electric pump.
