ARP Head Stud Kit

Description

Designed to suit:

Holden Gemini TX-TG

Holden Rodeo

Holden Jackaroo

Holden Shuttle

Isuzu Bellett

Isuzu Piazza (early model with G200)

Isuzu Trooper

Isuzu Amigo

Opal Kadett

Chevrolet Chevette

Chevrolet Luv

Any vehicle fitted with a SOHC G series engine such as G161, G180 or G200

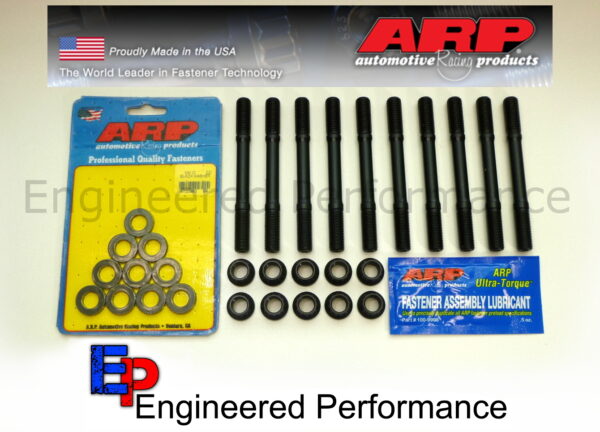

Package includes:

   – Head studs – 8740 chrome moly (200,000psi tensile strength) – black oxide finish

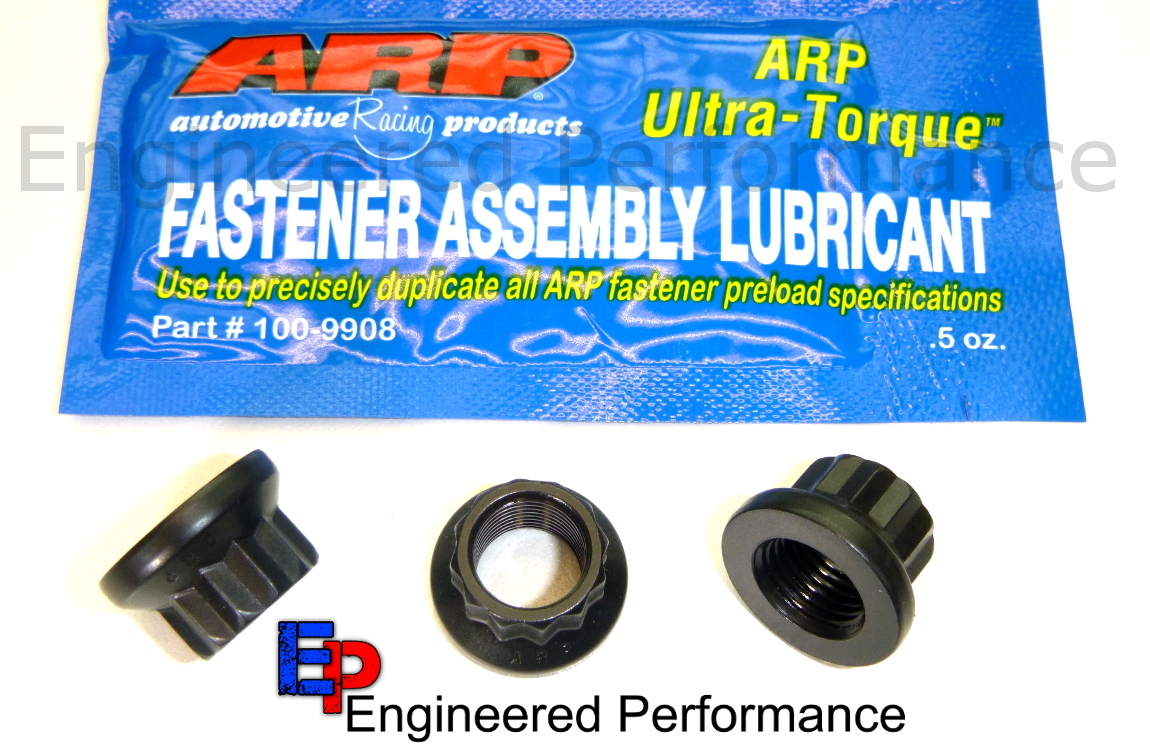

   – 12 point nuts – 8740 chrome moly – black oxide finish

   – Flat washers – 8740 chrome moly – black oxide finish

   – ARP assembly lubricant satchel

   – ARP fitting instructions with torque values

ARP head studs material & ratings – These studs are manufactured from 8740 chrome moly alloy steel material and are rated at 200,000psi (1,379MPa) tensile strength.  When you compare this to the tensile strength of a typical high tensile grade 5 steel bolt (500MPa), or an even stronger grade 8 steel bolt (800Mpa), you can see these are made from a very strong material.

This allows you to torque your head down harder than you ever could using stock head bolts.  Standard Isuzu G series engine recommended maximum head bolt torque is 100Nm and is based on the size and strength of the standard steel head bolts.  These ARP studs can be torqued to 122Nm !!

This allows for much higher clamping loads on your head to your block, which sandwiches your head gasket harder, reducing the chance of blowing a head gasket, and stopping your head from lifting at high boost pressures.

You can go to the ARP website at: www.arp-bolts.com  and check out their catalogue to read all about their materials and manufacturing processes.  ARP is basically the best you can get.

Shipping is flat rate to any Australian address, we will either ship with our courier (preferred) or Aus Post registered (signature required).

Engineered Performance is not just an online store, we fully understand and use our own products, and tune them on customers cars.  We do not simply re-sell or re-box products, we individually prepare them for customers upon purchase, which includes pre-inspection, initial setup/adjustments, and jetting and injector sizing for our carbs & throttle bodies, and can offer practical advice based on first hand knowledge.  Consider this when choosing who to buy from.
